Vantis Zero

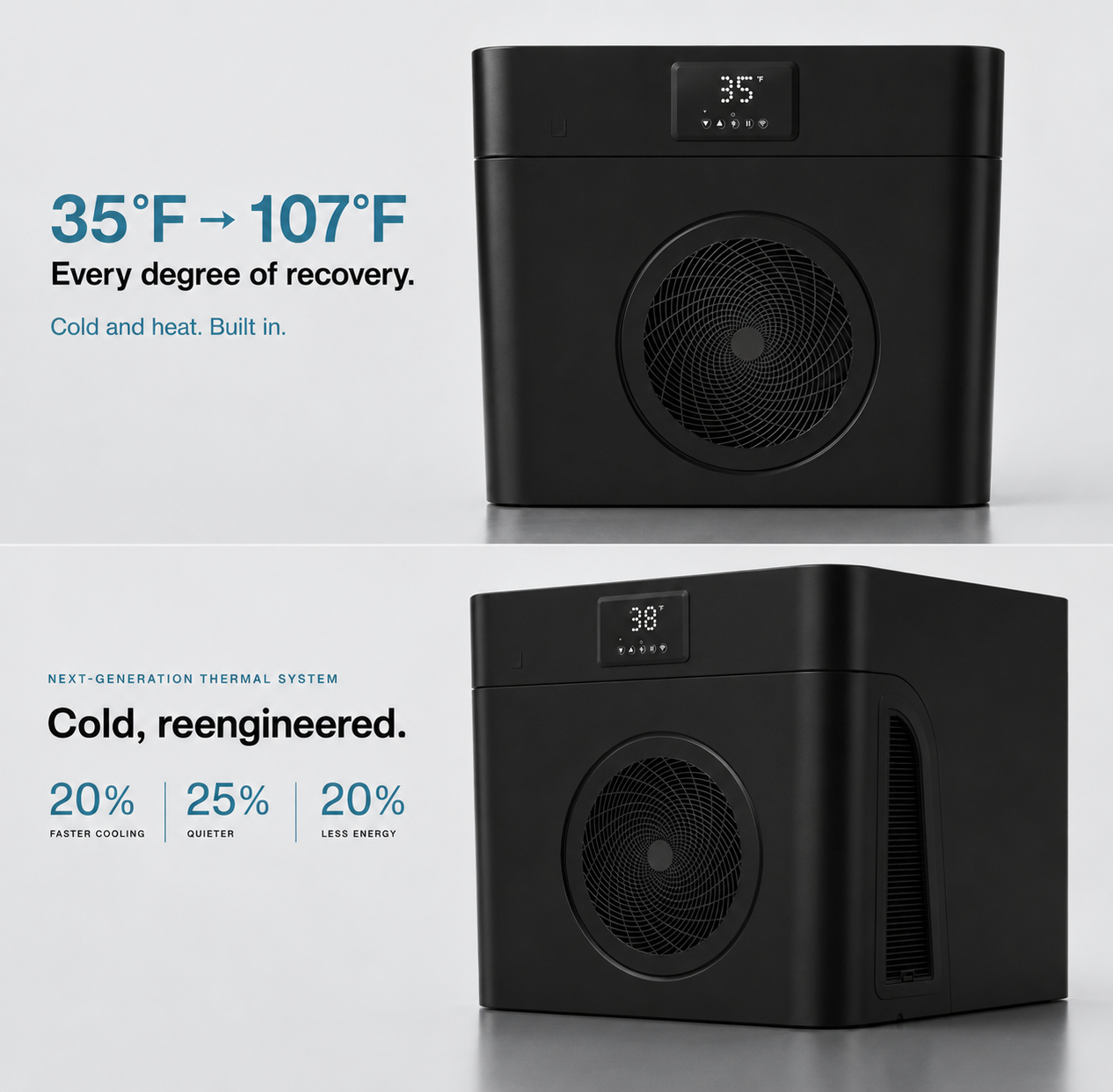

• One vessel, the full range. The integrated 1 HP chiller and heater package holds anything from 35°F to 107°F, so the same unit serves a cold session in the morning and a warm soak at night without a second machine.
• No ice. The chiller pulls water down at approximately 13.5°F per hour and then holds set point, so the unit is ready when the client is rather than when the delivery arrives.
• Four-stage water care. Sediment filtration, activated carbon, ozone and UV-C run on the circulation loop, reducing debris, body oils and odor between water changes and cutting the manual dosing routine.

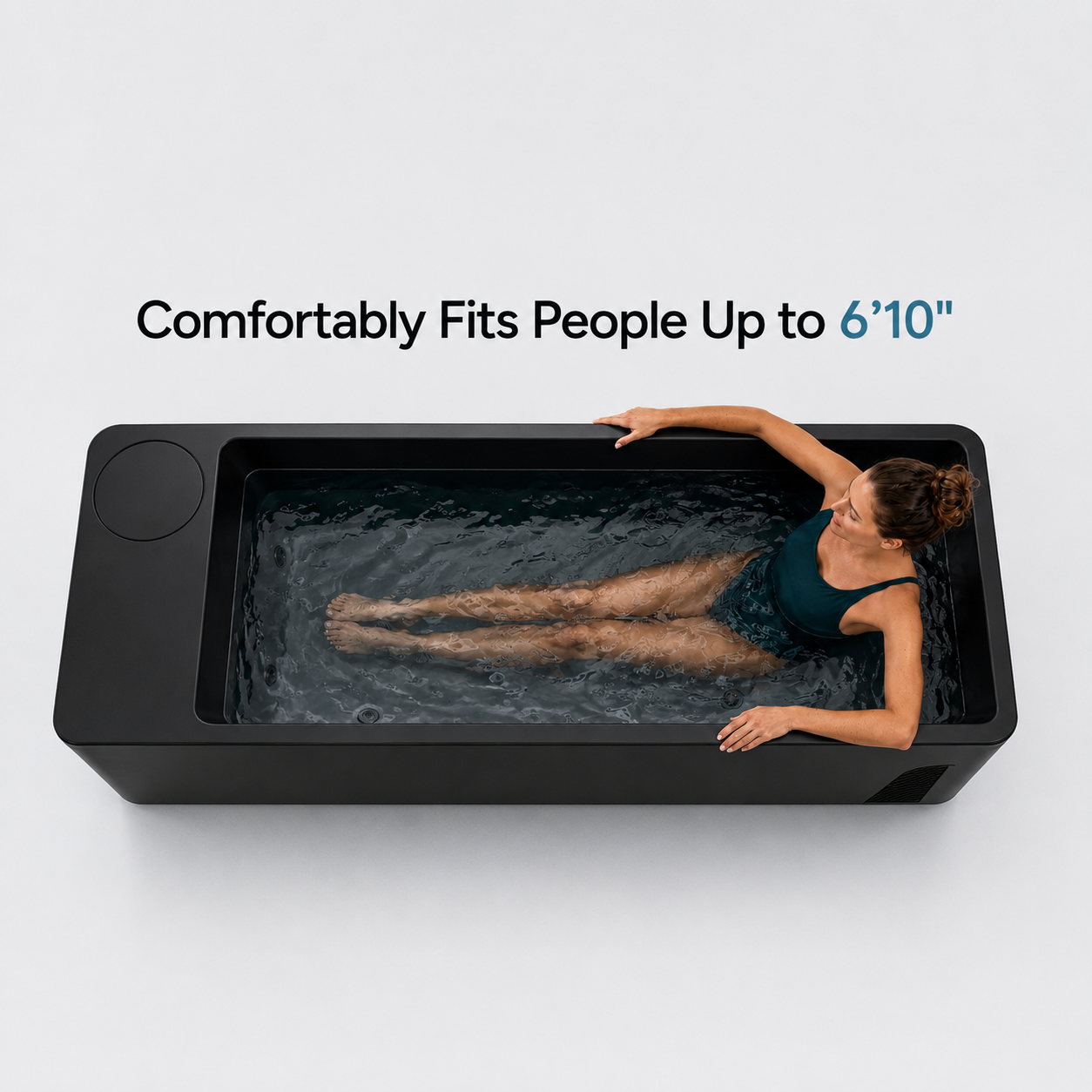

• Fits a full-length adult. The interior basin runs 65 in long and 27.6 in wide, comfortably accommodating users up to 6 ft 10 in.
• Standard power. The whole system runs from a single 110–120V grounded outlet — no 240V service, no sub-panel work, no dedicated three-phase feed.
• Set from the panel or the phone. Temperature, session duration and filtration cycles are set on the integrated digital display or scheduled ahead from the mobile app and handheld remote.
• Indoors or out. The marine-grade weather-resistant composite shell and closed-cell insulation on all six surfaces let the unit sit in a suite, a garage, a deck or a patio.
• Efficient to hold. Under published manufacturer test conditions, holding 39°F costs approximately $26 per month at $0.16 per kWh.

Model

Vantis Zero VZ-CP-1

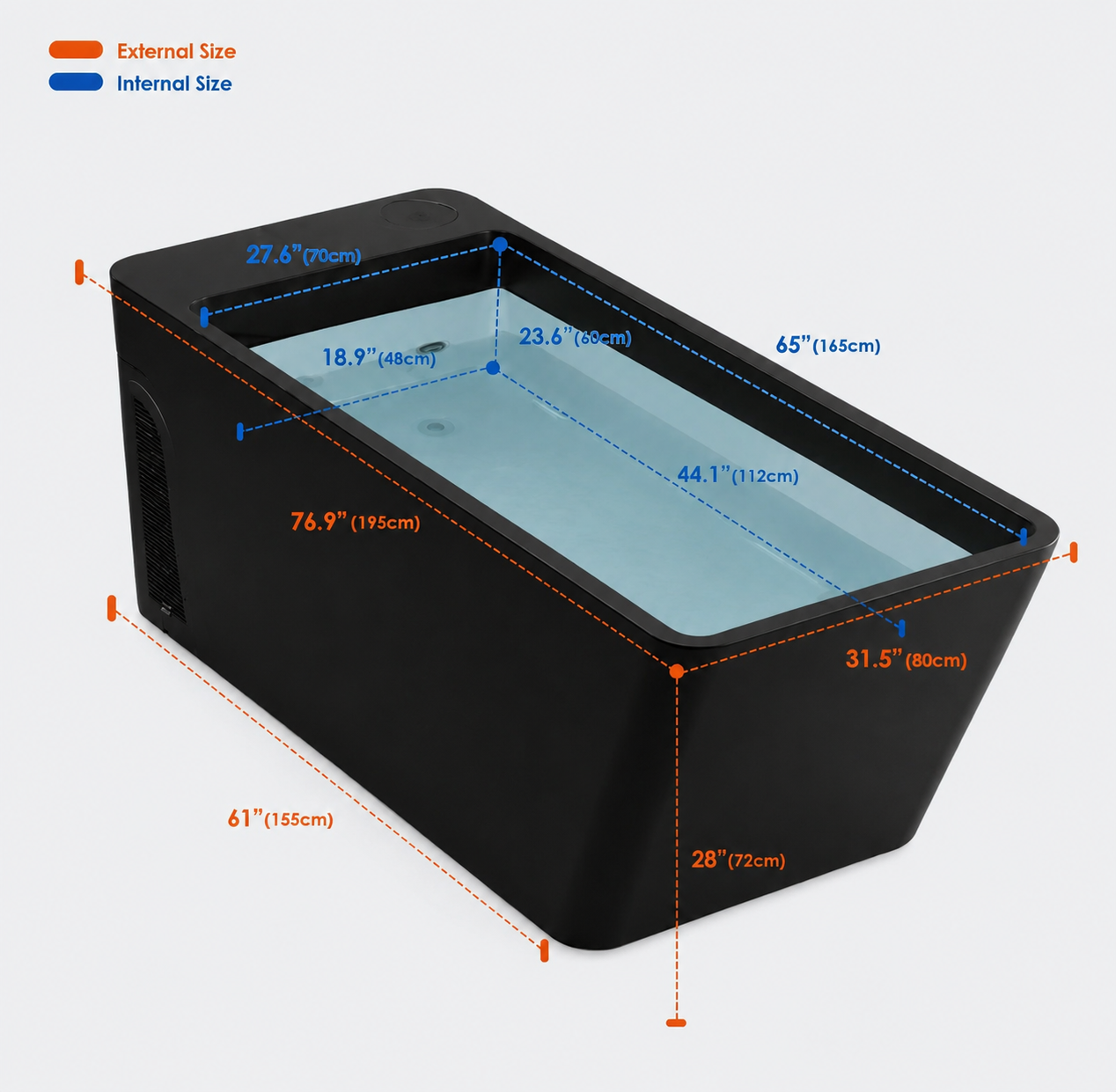

Exterior dimensions

76.9 in L × 31.5 in W × 28 in H

Interior basin

65 in L × 27.6 in W × 23.5 in D

Interior at waterline

44.1 in L × 18.9 in W usable seated length

Unit weight, dry

242 lb

Water capacity

Approximately 105 gal

Temperature range

35°F to 107°F

Cooling system

1 HP industrial-grade chiller

Cool-down rate

Approximately 13.5°F per hour

Heating

Integrated, to 107°F

Water care

Four-stage — sediment filtration, activated carbon, ozone, UV-C

Electrical

Standard 110–120V, 60 Hz grounded outlet

Holding cost

Approximately $26 per month at 39°F and $0.16/kWh, per manufacturer test conditions

Construction

Marine-grade weather-resistant composite, closed-cell insulation on all six surfaces

Control

Integrated digital display, handheld remote and mobile app with scheduling

Maximum user height

6 ft 10 in

Placement

Indoor or outdoor

Occupancy

1

Filter service interval

8–12 weeks, four stages

Warranty

One year parts and service, included. Extended coverage available for purchase up to three years.

1. 01Set the unit on a level, load-rated surface with the thermal unit end clear for airflow and service.
2. 02Fill to the marked waterline through the carbon hose filter — approximately 105 gallons.
3. 03Plug into a standard grounded 110–120V outlet and power up at the panel.
4. 04Set the target temperature. From ambient, allow roughly 13.5°F of pull-down per hour, or schedule the set point ahead in the app so the unit is at temperature before the session.
5. 05Set the filtration cycle and session duration at the panel or in the app.
6. 06Run the session. The client enters and exits over the basin rim; keep the deck surface dry and non-slip.
7. 07Replace the insulated cover after every session to hold temperature and keep debris out.
8. 08Replace filters every 8 to 12 weeks and change the water on the published maintenance schedule.

Minimum clear space

6 ft × 3 ft footprint, plus access on the entry side

Unit footprint

76.9 in × 31.5 in

Clearance, thermal unit end

18 in for airflow and service access

Clearance, entry side

24 in for safe entry and exit

Delivery door width, minimum

34 in

Floor loading

Level and rated for 242 lb dry plus approximately 875 lb filled, plus occupant

Electrical circuit

One standard 110–120V, 60 Hz grounded outlet

Plumbing

None required — fill from a hose, drain to a suitable point

Placement

Indoor or outdoor, on a patio, deck, garage or suite

Lead time

90–120 days to your door, made to order — varies by unit

White label branding

Your logo and business name applied to the shell and thermal unit, with custom colors and finishes — extra fee

Quoted

Custom shell finish

Finish outside the standard range

Quoted

Spare filter program

Annual filter sets held on site for the four-stage system

Quoted

Additional insulated cover

Spare tri-fold insulated cover for turnover

Quoted

Step and deck package

Matched entry step and surround for the installed position

Quoted

• Delivered ready to run — no install required. Fill, plug into a standard 120V outlet and set the temperature.
• Vantis Zero vessel with integrated chilling and heating system
• Four-stage filtration with ozone and UV-C
• Tri-fold insulated cover
• Replacement filter set
• Carbon hose filter for filling
• Skimmer net
• Power cord and connection accessories
• Setup, operating and maintenance documentation
• Freight to the loading dock and inside delivery to the installed position
• One year parts and service warranty included, extendable up to three years for purchase

Complete specification, site drawings and electrical requirements for the VZ-CP-1. From $7,400.
