Vantis Apex 1
A single-occupant hardshell sitting chamber in aluminum alloy, adjustable from 1.3 to 2.0 ATA, with a 2-in-1 oxygen concentrator, in-chamber air conditioning and interior and exterior touchscreens so one person can run a session alone.
- Price
- $52,000
- Footprint
- 79 IN × 35 IN
- Height
- 67 IN
- Weight
- 727 LB
- Electrical
- 120V / 60 HZ, 20A DEDICATED
- Pressure
- 1.3–2.0 ATA
- Occupancy
- 1
What it does
Plainly, what happens in a session.
- One person sits in the chamber on the built-in sofa. The aluminum hardshell seals and pressurizes anywhere from 1.3 to 2.0 ATA with no valve swap between settings.
- The 2-in-1 concentrator carries the booster pump inside the same cabinet, delivering 93% oxygen through the mask at up to 10 L/min while the cabin holds pressure.
- A water-cooled air conditioning module conditions the cabin so long sessions stay comfortable.
- A 9-inch interior touchscreen and a 13-inch exterior touchscreen mirror each other, so a single user can start, run and end a session without an operator.
- The screen charts chamber pressure, oxygen concentration, temperature and humidity, and logs session count and accumulated time.
Why this one
What the cheaper unit does not do.
Aluminum hardshell, not a soft chamber
Automotive paint-sprayed aluminum: lightweight, high strength, corrosion resistant, non-magnetic and recyclable, rated for true 2.0 ATA rather than the fractional pressure a fabric chamber allows.
Four pressure settings, one machine
1.3, 1.5, 1.7 and 2.0 ATA are selected on screen with no need to replace pressure valves between settings.
Run it by yourself
Mirrored 9-inch interior and 13-inch exterior touchscreens mean single-person operation, with an intercom system and UV disinfection lamp built in.
Four-fold pressure protection
Manual relief valve, two automatic relief valves and an emergency relief valve, plus a mechanical pressure gauge and anti-static mat.
Climate inside the vessel
A water-cooled air conditioner conditions the cabin, so the chamber stays usable through back-to-back sessions rather than heating up.
Full specifications
OLV-YZ01 specification
- Model number
- OLV-YZ01
- Material
- Aluminum
- Chamber dimension
- 79" L × 35" W × 67" H
- Operating pressure
- 1.3 / 1.5 / 1.7 / 2.0 ATA (14.5 psi max)
- Weight
- 727 lb
- Occupancy
- 1
- Interior screen
- 9" touchscreen
- Exterior screen
- 13" touchscreen
- Concentrator
- 2-in-1 concentrator and booster pump, 15.7" × 18.5" × 42", 194 lb
- Oxygen flow
- 1–10 L/min, adjustable
- Oxygen purity
- 93% delivered by mask under pressure
- Air flow
- 110 L/min
- Concentrator power
- 2,000 W
- Voltage
- 120V, 60 Hz
- Air conditioner
- Water cooled, 14.4" × 17.5" × 23.6", 600 W
- Cooling range
- 36–50 °F below ambient
- Safety
- Manual, dual automatic and emergency pressure relief valves
- Cabin equipment
- Sofa, intercom, UV disinfection lamp, anti-static mat, pressure gauge, humidifier bottle
- Breathing
- 2 oxygen masks, 2 headset oxygen tubes
- Interface languages
- English, French, German, Portuguese, Spanish
- Warranty
- Two years, whole-life service
- Plumbing
- None
Site requirements
Whether it fits in your building, today.
- System length
- 79 in
- System width
- 35 in
- System height
- 67 in
- Concentrator footprint
- 15.7" × 18.5" × 42"
- Required clearance
- 8 in on all sides for ventilation and access
- Delivery door width, minimum
- 36 in
- Electrical
- 120V, 60 Hz, dedicated 20A circuit
- Use
- Indoor use only, adequate ventilation required
- Lead time
- 90–120 days to your door, made to order — varies by unit
- Receiving
- Site must be able to unload
- Plumbing
- None required
- White glove install
- $8,000, required — includes hands-on staff training
Options and configurations
Configure the unit.
- White label branding
- Your logo and business name applied to the chamber, with custom colors and finishes — extra fee
- Quoted
- Shell color
- White, black or a custom color
- Included / quoted
- Leather and stitching package
- Custom leather finishes and stitching throughout the cabin
- Quoted

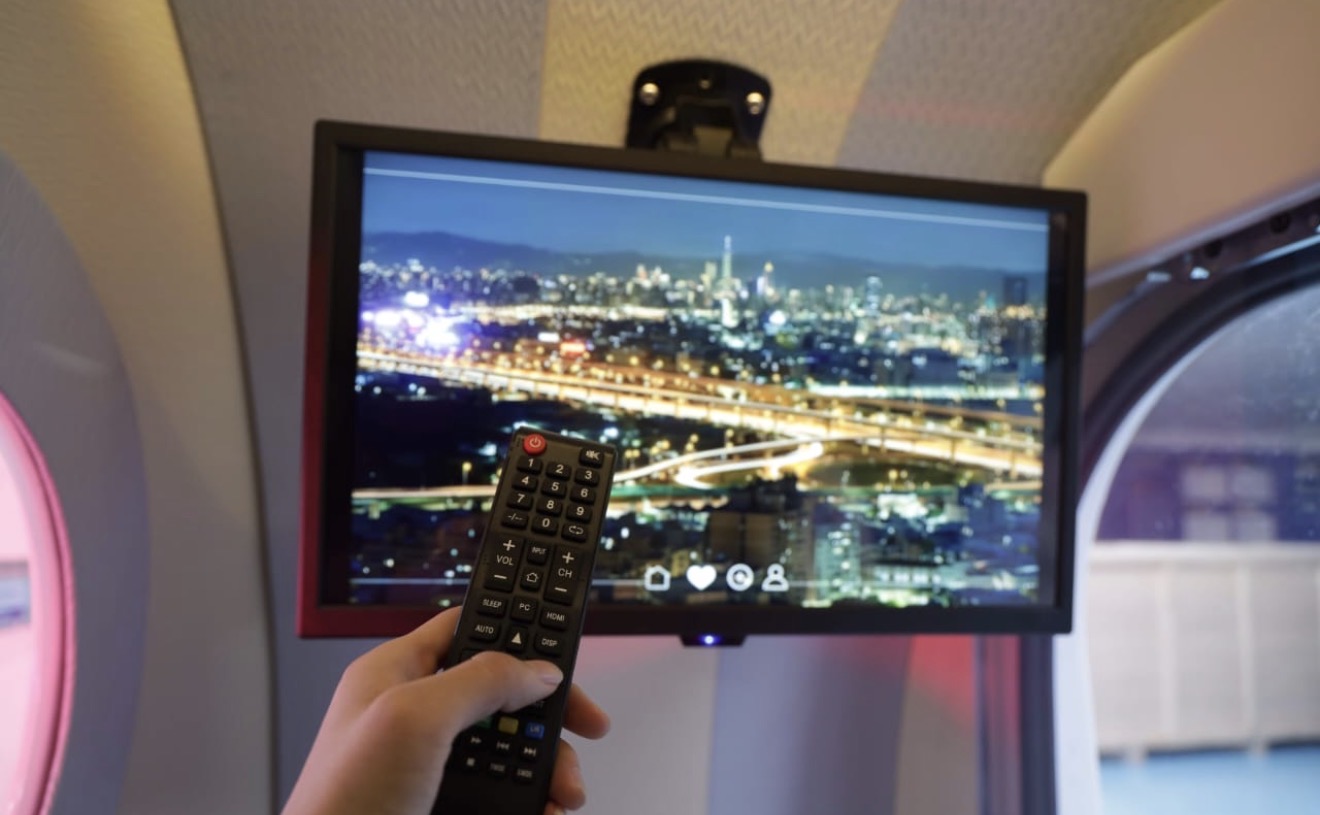

- In-cabin entertainment screen
- Wall-mounted display and remote inside the pressure vessel
- Quoted
- Extra filter set
- Additional primary and HEPA filter sets beyond the two and six supplied
- Quoted
What's included
In the price on the plate.
- White glove install and hands-on staff training, $8,000 — required on every unit, not optional

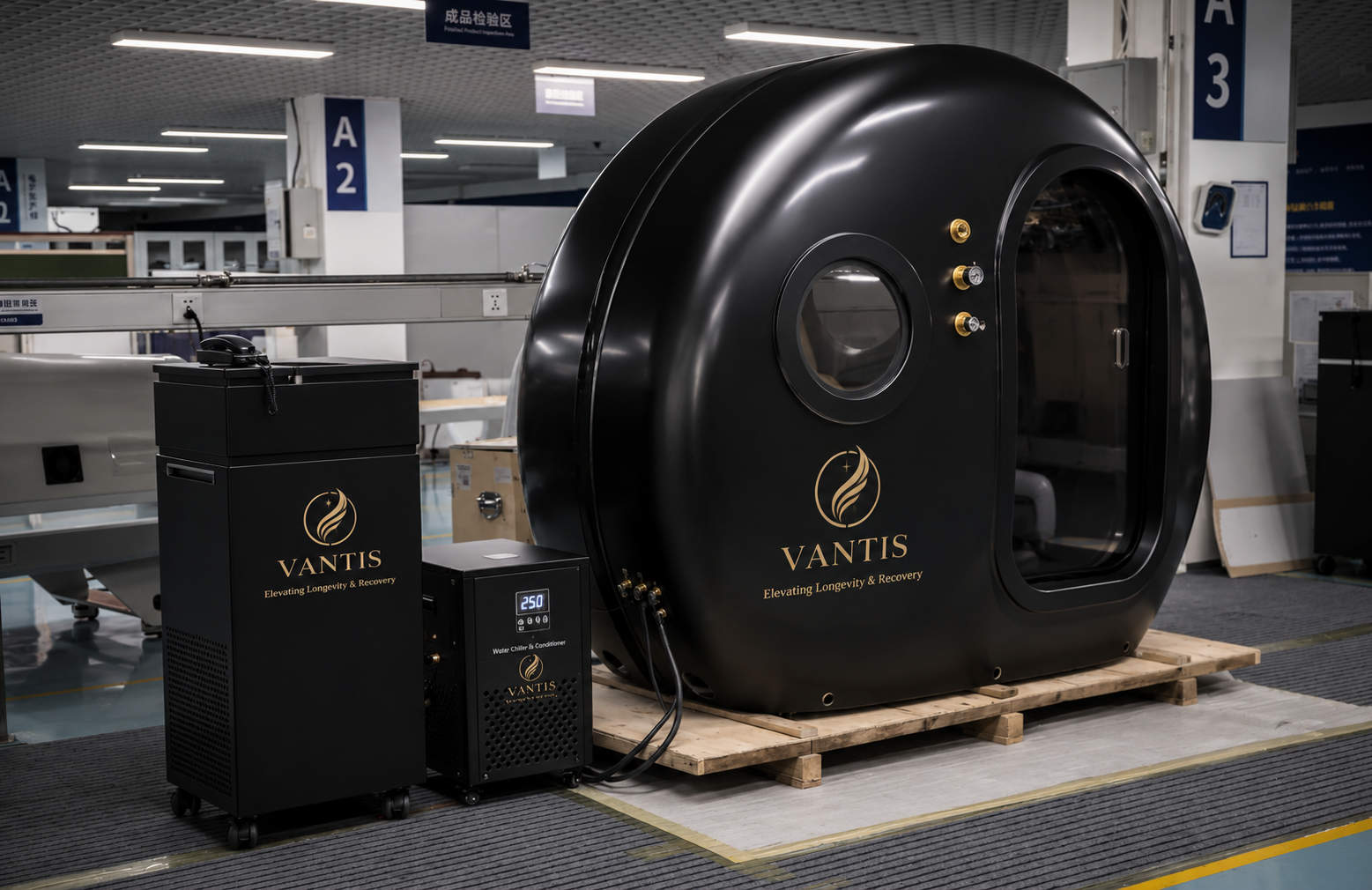

- One-person aluminum sitting chamber with sofa, intercom, UV lamp and anti-static mat
- 2-in-1 oxygen concentrator with integrated booster pump, 10 L/min at 93%
- Water-cooled air conditioning module
- Two oxygen masks, two headset oxygen tubes and a humidifier bottle
- Two primary filter sets and six HEPA filter sets
- Two-year warranty with whole-life service, and full spec and site documentation before purchase
Run your numbers
Vantis Apex 1, against your own figures.
Your inputs
Result of your inputs
Monthly revenue from this unit
—
Based on the numbers you entered. Not a projection, estimate, or representation of results.
Documentation
Download the full spec sheet.
Complete specification, site drawings and electrical requirements for the OLV-YZ01. From $52,000.
