Vantis Apex 2
A two-person hardshell HBOT chamber in aluminum alloy, adjustable from 1.3 to 2.0 ATA, with BIBS masks, a double sofa, climate control and a 43-inch screen inside the pressure vessel.
- Price
- $85,000
- Footprint
- 98.4 IN × 87.8 IN
- Height
- 77.5 IN
- Weight
- 1,655 LB
- Electrical
- 240V / 110V, 50-60 HZ
- Pressure
- 1.3–2.0 ATA
- Occupancy
- 2
What it does
Plainly, what happens in a session.
- Two people sit in the chamber together on a double sofa. The hardshell cabin seals and pressurizes anywhere from 1.3 to 2.0 ATA.
- A 400 L/min air booster module pressurizes the cabin while two 20 L/min oxygen modules feed the BIBS masks at 93 ± 3% purity.
- A dedicated air conditioning module holds cabin temperature at 420 m³/hour of air movement through the session.
- Occupants control the session from a mirrored interior panel, with a matching exterior panel for the operator.
- A 43-inch screen, intercom and entertainment system are built into the cabin, and the 40 mm PC door keeps full visibility throughout.
Why this one
What the cheaper unit does not do.
Aluminum alloy hardshell, not a soft chamber
The pressure vessel is aluminum alloy with a 40 mm aviation-grade PC door, rated to a true 2.0 ATA rather than the fractional pressures a fabric chamber is limited to.
Two seats, one session
A double sofa and two BIBS masks mean two people are served per session, so a single room and a single operator carry twice the bookings.
Top-tier components throughout
SIEMENS pressure relief valve, SMC filtration, dual-core oxygen generation in a modular split design, and a 22-inch intelligent HMI with seven preset modes and one-click switching.
Built to be lived in
Air conditioning, intercom, 43-inch TV entertainment, eco-friendly interior materials, and total visibility through the door so the cabin does not feel enclosed.
Operation data on screen
The HMI logs and charts the pressure curve for every session, with interior and exterior control panels, emergency stop and an emergency pressure relief device.
Full specifications
OLV-YZM02 specification
- Model number
- OLV-YZM02
- Material
- Aluminum alloy
- Chamber dimension
- 98.4" L × 87.8" W × 77.5" H
- Operating pressure
- 1.3 / 1.5 / 1.7 / 2.0 ATA
- Weight
- 1,655 lb (750 kg)
- Door thickness
- 40 mm aviation-grade PC
- Noise
- ≤ 60 dB(A)
- Voltage
- AC 240V / 110V, 50/60 Hz
- Chamber input power
- 200 W
- Occupancy
- 2
- Control
- 22" intelligent HMI, 7 preset modes, interior and exterior panels
- Air booster module
- OLV-YCZ01, 20" × 16" × 38", 220 lb, 3,100 W
- Booster output
- > 350 kPa, > 400 L/min, ≤ 60 dB
- Oxygen module
- OLV-YC20S, 20" × 16" × 38", 198 lb, 1,450 W × 2
- Oxygen flow
- 0–20 L/min (×2)
- Oxygen purity
- 93 ± 3%
- Oxygen outlet pressure
- > 350 kPa
- Air conditioning module
- Exterior 66 lb, interior 9 lb, 200 W
- Air volume
- 420 m³/hour, 5 m/s
- Plumbing
- None

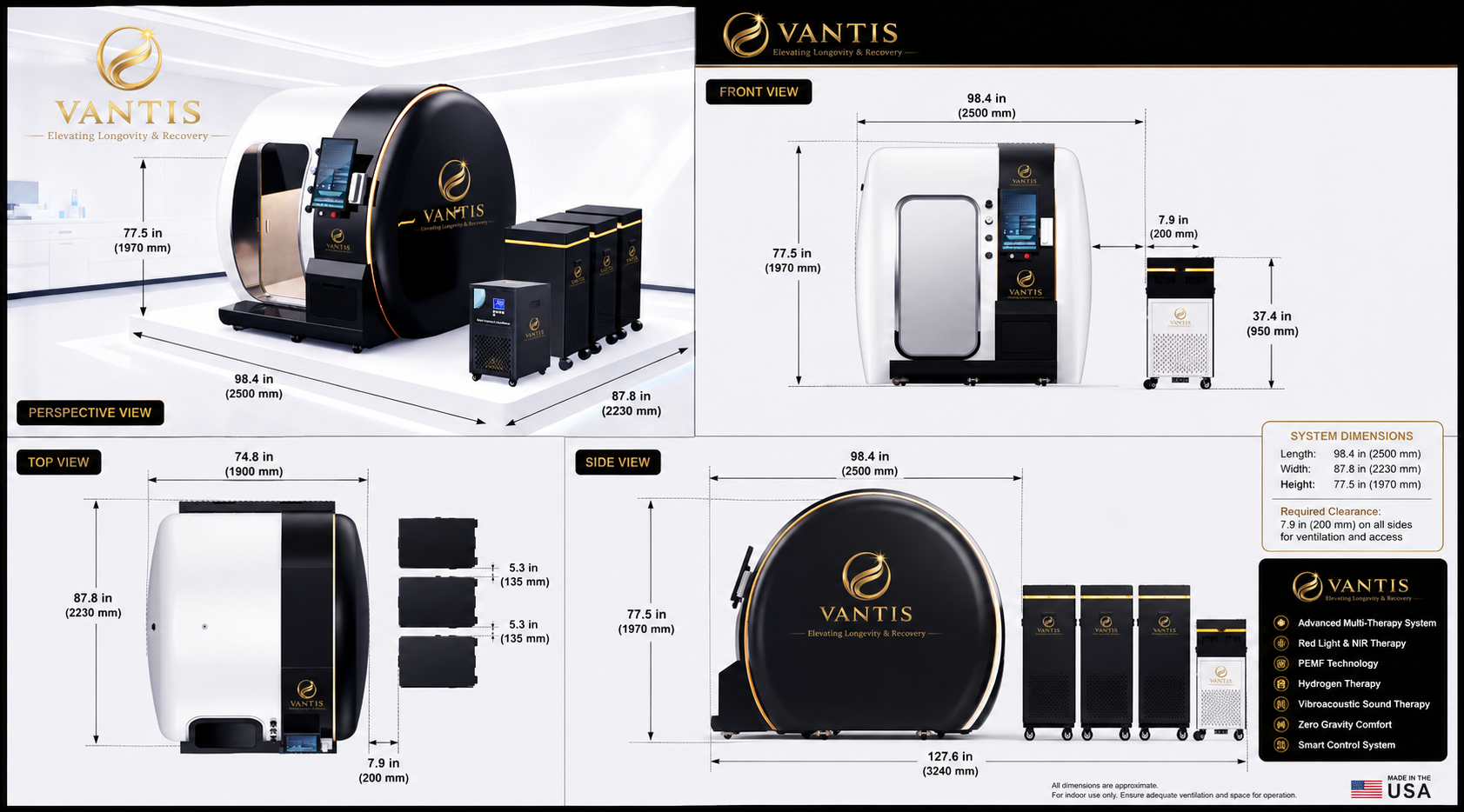

Site requirements
Whether it fits in your building, today.
- System length
- 98.4 in (2,500 mm)
- System width
- 87.8 in (2,230 mm)
- System height
- 77.5 in (1,970 mm)
- Required clearance
- 7.9 in on all sides for ventilation and access
- Full run length with modules
- 127.6 in
- Delivery door width, minimum
- 40 in
- Electrical
- AC 240V / 110V, 50/60 Hz service
- Use
- Indoor use only, adequate ventilation required
- Lead time
- 90–120 days to your door, made to order — varies by unit
- Receiving
- Site must be able to unload
- Plumbing
- None required
- White glove install
- $8,000, required — includes hands-on staff training
Options and configurations
Configure the unit.
- White label branding
- Your logo and business name applied to the chamber, with custom colors and finishes — extra fee
- Quoted
- Custom paint color
- Chamber shell finished in a color of your choosing
- Quoted
- Leather and stitching package
- Custom leather finishes and stitching throughout the cabin
- Quoted
- Alcantara interior
- Alcantara leather cabin trim
- Quoted
- Maybach seat upgrade
- High-end seating in place of the standard double sofa
- Quoted
What's included
In the price on the plate.
- White glove install and hands-on staff training, $8,000 — required on every unit, not optional
- Two-person sitting chamber with BIBS breathing system and double sofa
- Two 20 L/min oxygen modules and one 400 L/min air compressor module
- Air conditioning module, intercom and 43-inch TV
- Interior and exterior control panels, emergency stop and emergency pressure relief device
- Full spec, site requirement and operating documentation before purchase
Run your numbers
Vantis Apex 2, against your own figures.
Your inputs
Result of your inputs
Monthly revenue from this unit
—
Based on the numbers you entered. Not a projection, estimate, or representation of results.
Documentation
Download the full spec sheet.
Complete specification, site drawings and electrical requirements for the OLV-YZM02. From $85,000.
