The Locker Room

• A single occupant steps into the standing booth, the steel door seals, and the vessel pressurizes anywhere from 1.1 to 2.0 ATA — selected on screen, with no pressure valve to swap between settings.

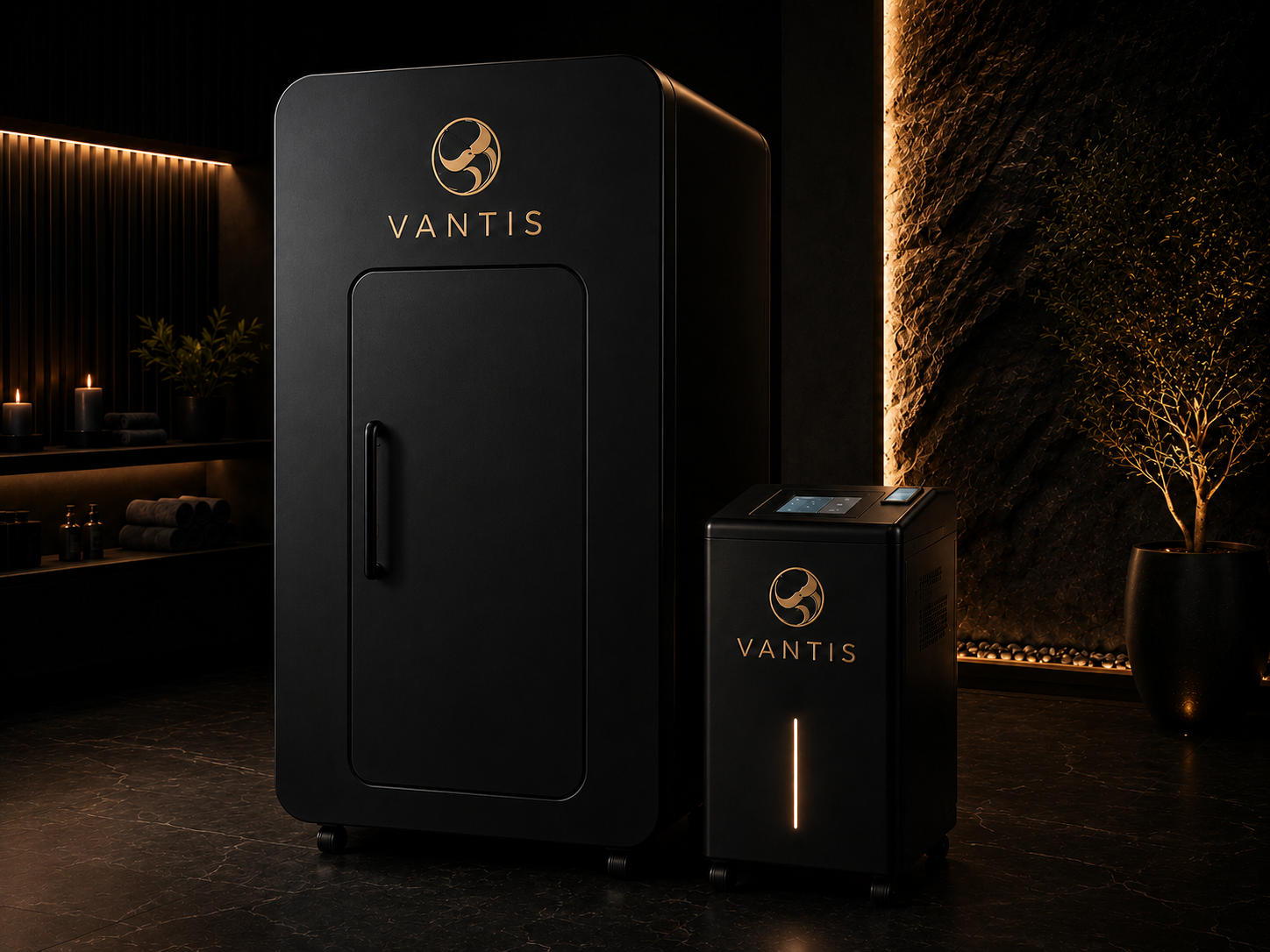

• Up to 1.5 ATA the chamber ships with a clear glass door for full visibility. At 1.7 and 2.0 ATA it runs a solid steel door, with a $10,000 upcharge to bring the vessel to full 2.0 ATA.
• The host machine is an intelligent 2-in-1 compressor and concentrator in one 16 in by 18 in cabinet: 15 L/min of oxygen at 93% ±3%, delivered through a headset tube or a mask.
• The cabin holds a 10-inch touchscreen and the host machine carries a matching 10-inch screen outside, so one person can run the full session — pressure set point, ramp rate, therapy mode, countdown and live readout — without a second operator.
• An air conditioning set is built into the system, with cabin temperature, humidity and pressure displayed live on both screens.
• Pressure rise and fall rates are adjustable, and relief is four-fold: two manual valves, two automatic valves and one emergency valve.
• The vessel is Q390B low-alloy steel plate, corrosion resistant, on a 55 in by 32 in floor plan at 1,433 lb — the smallest Vantis pressure vessel.
• Two intercom handsets keep the occupant in contact with the room for the whole session.

Model number

OLV-LKRM01

Cabin material

Q390B low-alloy steel plate, corrosion resistant

Cabin dimension

55.1" L × 31.5" W × 74.0" H

Cabin weight

1,433 lb

Operating pressure

1.1 to 2.0 ATA, adjustable — no pressure valve change required

Occupancy

1

Door opening

24.5" W × 52.8" H

Door

Clear glass door to 1.5 ATA; solid steel door at 1.7–2.0 ATA

Interior screen

10" touchscreen

Exterior screen

10" touchscreen on the host machine

Oxygen flow

15 L/min

Oxygen concentration

93% ±3%

Oxygen delivery

One headset oxygen tube and one mask oxygen tube

Host machine

Intelligent 2-in-1 compressor and concentrator

Host machine dimension

15.7" W × 18.1" D × 34.3" H

Host machine weight

176 lb, on casters

Air conditioning

One set, adjustable cabin temperature

Onboard display

Time set, countdown, therapy mode, pressure set point, real-time oxygen, flow, cabin temperature, humidity and pressure

Therapy modes

Fast pure oxygen, standard reduction

Pressure control

Adjustable rise and fall rate

Manual relief valves

2

Automatic relief valves

2

Emergency relief valve

1

Intercom

2 handsets

Running noise

55 dB

Voltage

120V, 60 Hz, dedicated 20A circuit

Rated power

1,500 W

Shell colors

Black, white or custom

Warranty

Three years on the cabin and host molecular sieve, one year on other components. Seating supplied free of charge, not warranted.

Plumbing

None

1. 01Power the host machine and confirm the cabin reads ambient pressure on both screens.
2. 02Set session time on the exterior 10-inch screen — 60 minutes is the standard slot — and select the therapy mode.
3. 03Set the pressure target between 1.1 and 2.0 ATA and confirm the rise rate. The vessel must carry the solid door for any set point above 1.5 ATA.
4. 04Seat the client, fit the headset tube or mask, and confirm intercom contact on both handsets.
5. 05Seal the door and start. The system ramps to the set point and holds it, with oxygen at 15 L/min and 93% ±3%.
6. 06Monitor cabin temperature, humidity, oxygen and pressure on the exterior screen for the full session; trim the air conditioning to client preference.
7. 07At countdown end the system runs standard reduction back to ambient. Do not open the door until the gauge reads zero differential.
8. 08Wipe the cabin down and reset the seating and oxygen tubing before the next client.

Cabin length

55.1 in

Cabin width

31.5 in

Cabin height

74.0 in

Host machine footprint

15.7" × 18.1" × 34.3"

Minimum clear room

8 ft × 8 ft including the host machine

Minimum ceiling height

8 ft

Required clearance

24 in at the door, 6 in on all other sides for ventilation and service

Delivery door width, minimum

36 in

Floor

Level, rated for a 1,433 lb cabin plus a 176 lb host machine

Electrical

One dedicated 120V, 60 Hz, 20A branch circuit, 1,500 W connected load

Use

Indoor use only, adequate ventilation required

Noise at the wall

55 dB running

Lead time

90–120 days to your door, made to order — varies by unit

Receiving

Site must be able to unload

Plumbing

None required

White glove install

$8,000, required — includes hands-on staff training

2.0 ATA upgrade (solid door)

Brings the vessel to full 2.0 ATA and fits the solid steel door required at 1.7–2.0 ATA; replaces the standard clear glass door

+$10,000

Clear glass door (standard to 1.5 ATA)

Full-visibility door fitted as standard for 1.1–1.5 ATA operation

Included

White label branding

Your logo and business name applied to the chamber, with custom colors and finishes — extra fee

Quoted

Shell color

Black or white as standard, custom color to order

Included / quoted

Leather and stitching package

Custom leather finishes and stitching on the interior seating and trim

Quoted

In-cabin entertainment screen

Wall-mounted display inside the pressure vessel

Quoted

Extra filter set

Additional primary and HEPA filter sets beyond those supplied

Quoted

• White glove install and hands-on staff training, $8,000 — required on every unit, not optional
• Single-occupant vertical Q390B steel pressure vessel with glass door and seating
• Intelligent 2-in-1 compressor and concentrator host machine on casters, 15 L/min at 93% ±3%
• One headset oxygen tube and one mask oxygen tube
• Air conditioning set with adjustable cabin temperature
• Matching 10-inch interior and exterior touchscreens
• Two manual, two automatic and one emergency pressure relief valve, plus two intercom handsets
• Three-year cabin and molecular sieve warranty, one year on other components, and full spec and site documentation before purchase

Complete specification, site drawings and electrical requirements for the OLV-LKRM01. From $44,000.
