Vantis Meridian 2

A two-person hardshell chamber in a pearl-white composite shell, adjustable from 1.3 to 2.0 ATA, with twin reclining seats, BIBS masks and an in-cabin screen — a slightly tighter footprint than the Apex 2 for rooms that cannot give up the extra two feet.

VM-HBOT-2REV. 2026.1

Price: $73,000
Footprint: 86 IN × 71 IN
Height: 74 IN
Weight: 1,350 LB
Electrical: 240V / 110V, 50-60 HZ
Pressure: 1.3–2.0 ATA
Occupancy: 2

From$73,000

$36,500 down, then $1,718/mo · 24 mo

Subject to credit approval

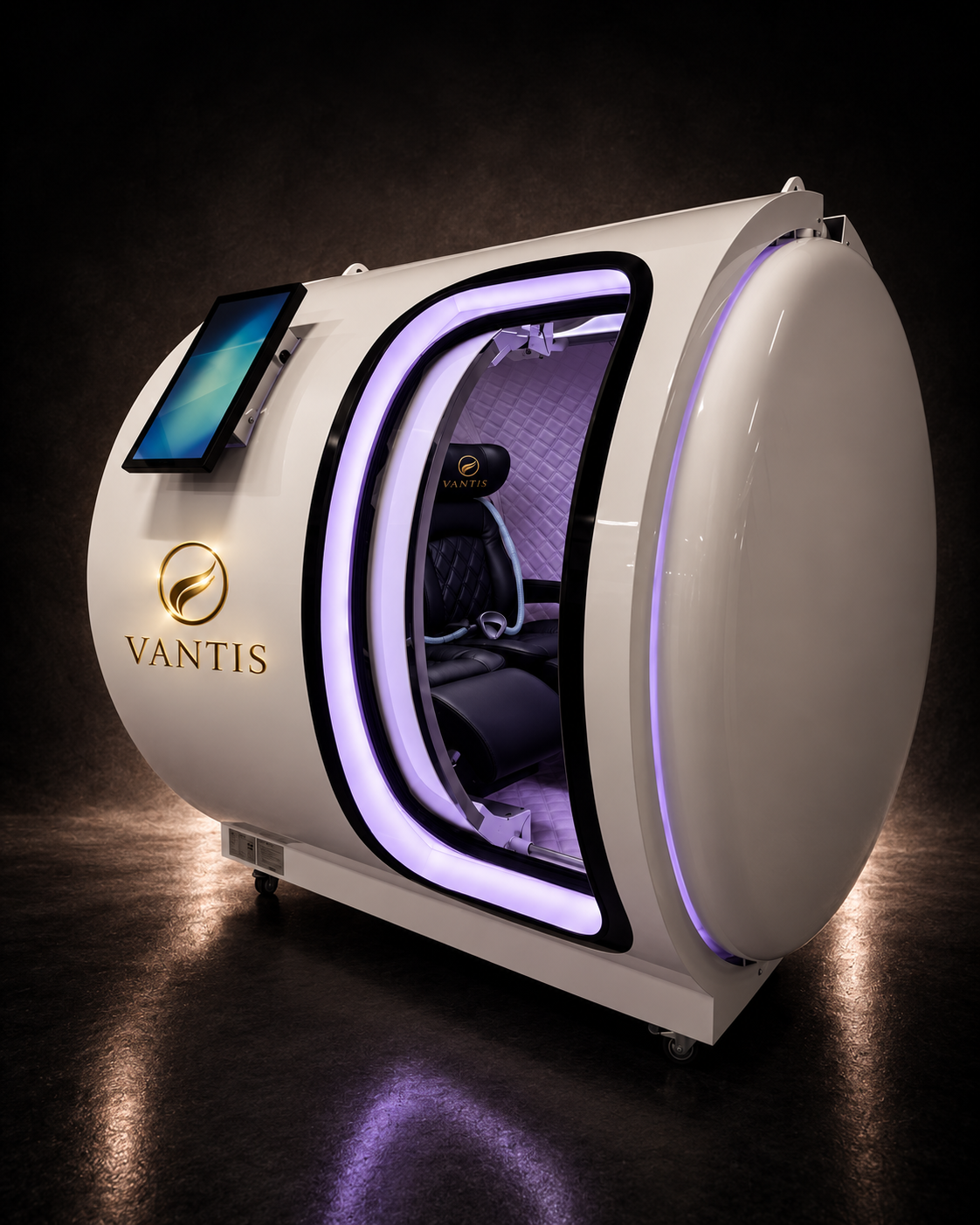

Vantis Meridian 2 with the domed door swung open, showing the lit purple cabin and reclining seat

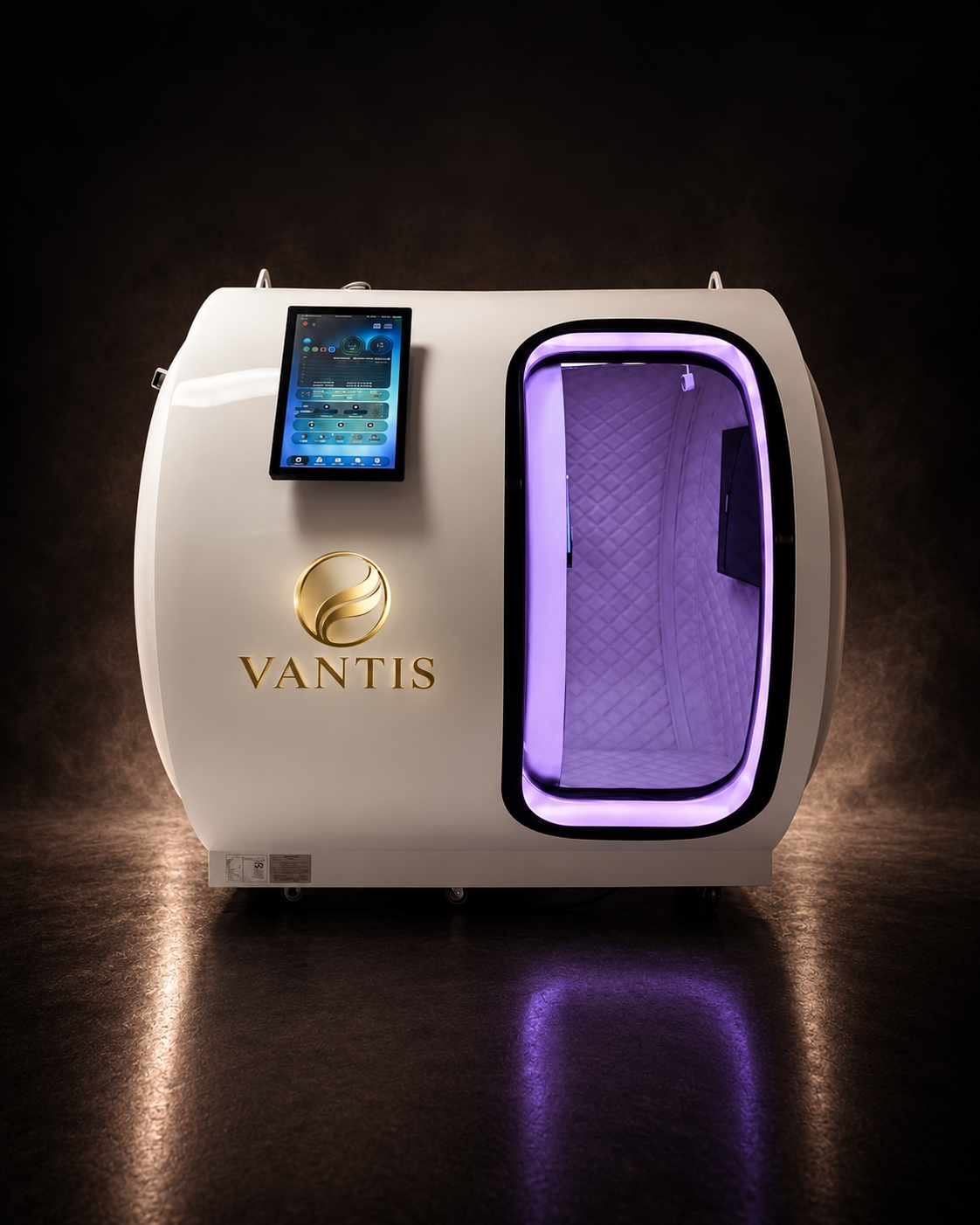

Front view of the Vantis Meridian 2 with control tablet and illuminated door surround

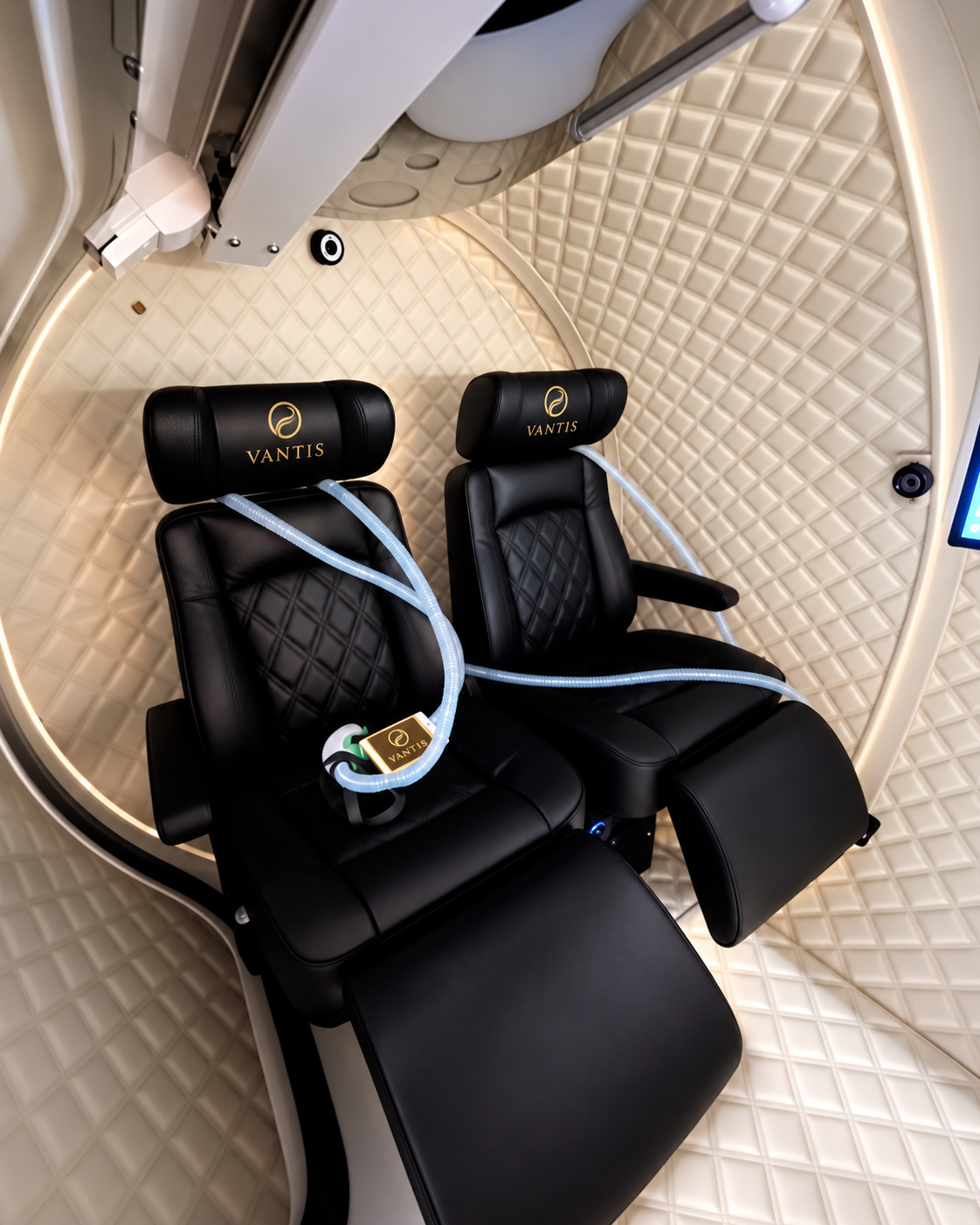

Twin reclining seats inside the Vantis Meridian 2 with BIBS breathing masks

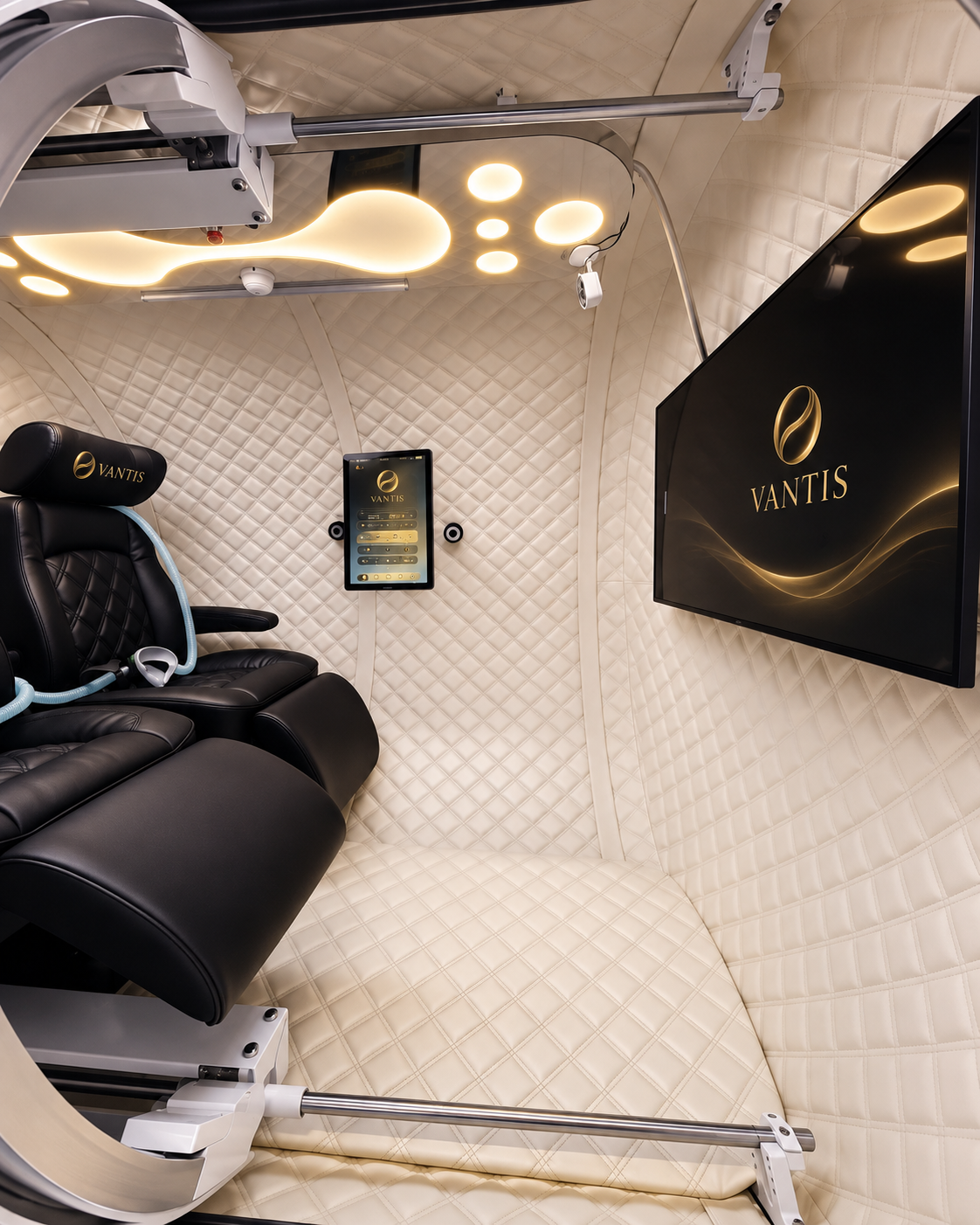

Quilted cream interior of the Vantis Meridian 2 with wall-mounted screen and control tablet

What it does

Plainly, what happens in a session.

Two people sit in the cabin on twin reclining seats. The domed door seals and the chamber pressurizes anywhere from 1.3 to 2.0 ATA.
An air booster module pressurizes the cabin while an oxygen module feeds the two BIBS masks at 93 ± 3% purity.
Cabin lighting, an in-cabin screen and a wall-mounted control tablet are built into the quilted interior.
The operator runs and monitors the session from the exterior touchscreen; occupants can call out on the intercom at any time.
The unit rolls on locking casters, so a room can be reconfigured without a rigging crew.

Why this one

What the cheaper unit does not do.

Two seats in a smaller room

It holds the same two occupants as the Apex 2 in a footprint roughly two feet shorter and a foot narrower, which is the difference between fitting a room and not.

Hardshell, not fabric

A composite hardshell vessel with a domed pressure door, rated to a true 2.0 ATA rather than the fractional pressures a soft chamber is limited to.

Finished like a suite, not a shop

Quilted cabin panels, gold Vantis marks, backlit door surround and an in-cabin screen — it reads as a room feature rather than a piece of equipment.

Operator control outside, occupant control inside

An exterior touchscreen for the operator and an interior tablet for the occupants, with emergency stop and emergency pressure relief.

Full specifications

VM-HBOT-2 specification

Model number: VM-HBOT-2
Material: Composite hardshell with steel frame base
Chamber dimension: 86" L × 71" W × 74" H
Operating pressure: 1.3 / 1.5 / 1.7 / 2.0 ATA
Weight: 1,350 lb
Occupancy: 2
Seating: Twin reclining seats with headrests
Breathing system: Two BIBS masks
Oxygen purity: 93 ± 3%
Control: Exterior touchscreen and interior tablet
Cabin features: In-cabin screen, intercom, ambient cabin lighting
Voltage: AC 240V / 110V, 50/60 Hz
Mobility: Locking casters, four corners
Plumbing: None
Warranty: One year parts and service, included. Extended coverage available for purchase up to three years.

Site requirements

Whether it fits in your building, today.

System length: 86 in
System width: 71 in
System height: 74 in
Required clearance: 8 in on all sides, plus 40 in at the door end for entry
Delivery door width, minimum: 36 in
Electrical: AC 240V / 110V, 50/60 Hz service
Use: Indoor use only, adequate ventilation required
Lead time: 90–120 days to your door, made to order — varies by unit
Receiving: Site must be able to unload
Plumbing: None required
White glove install: $8,000, required — includes hands-on staff training

Options and configurations

Configure the unit.

White label branding: Your logo and business name applied to the chamber, with custom colors and finishes — extra fee; Quoted
Custom paint color: Shell finished in a color of your choosing; Quoted
Leather and stitching package: Custom leather finishes and stitching throughout the cabin; Quoted
In-cabin screen upgrade: Larger wall-mounted display in place of the standard screen; Quoted

What's included

In the price on the plate.

White glove install and hands-on staff training, $8,000 — required on every unit, not optional
Two-person hardshell chamber with twin reclining seats and BIBS breathing system
Oxygen module and air booster module
Exterior touchscreen, interior control tablet and intercom
Emergency stop and emergency pressure relief device
Full spec, site requirement and operating documentation before purchase
One year parts and service warranty included, extendable up to three years for purchase
