Vantis Phoenix
A freestanding four-person cabin in a matte black shell over a Canadian hemlock interior, with a covered front canopy, full-height tempered glass door and a chromotherapy ceiling array. Indoor or outdoor, on a standard footprint of 78.7 inches square.
- Price
- FROM $12,500

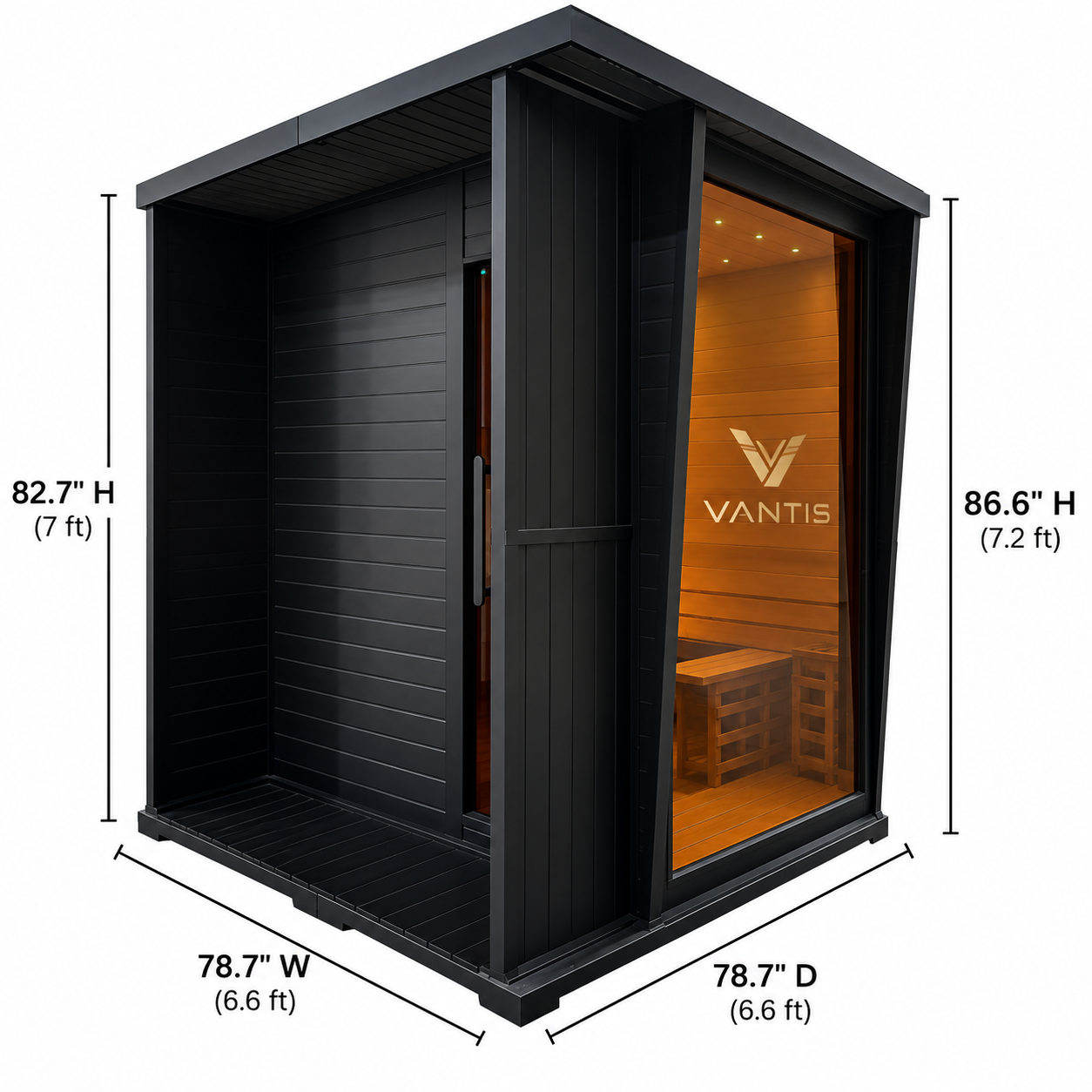

- Footprint
- 78.7 IN × 78.7 IN
- Height
- 82.7 IN – 86.6 IN
- Interior
- CANADIAN HEMLOCK
- Occupancy
- 4
- Placement
- INDOOR OR OUTDOOR
What it does
Plainly, what happens in a session.
- Four people sit facing forward on a full-width bench, with a second tier for seated or reclined use.
- The cabin is a freestanding structure, not a room build. It arrives in panels, assembles on site and needs no framing, drywall or millwork trade.
- A covered front canopy sets the entry back under the roofline, so the unit reads as finished architecture whether it sits on a patio or in a suite.
- The full-height tempered glass door keeps the cabin visible and open rather than closed off, which matters in a shared floor.
- A chromotherapy point array is set into the ceiling and runs alongside the overhead cabin light, set from the interior control.
- The wall-mounted digital control sets temperature and session duration inside the cabin.
Why this one
What the cheaper unit does not do.
A finished exterior, not a wood box

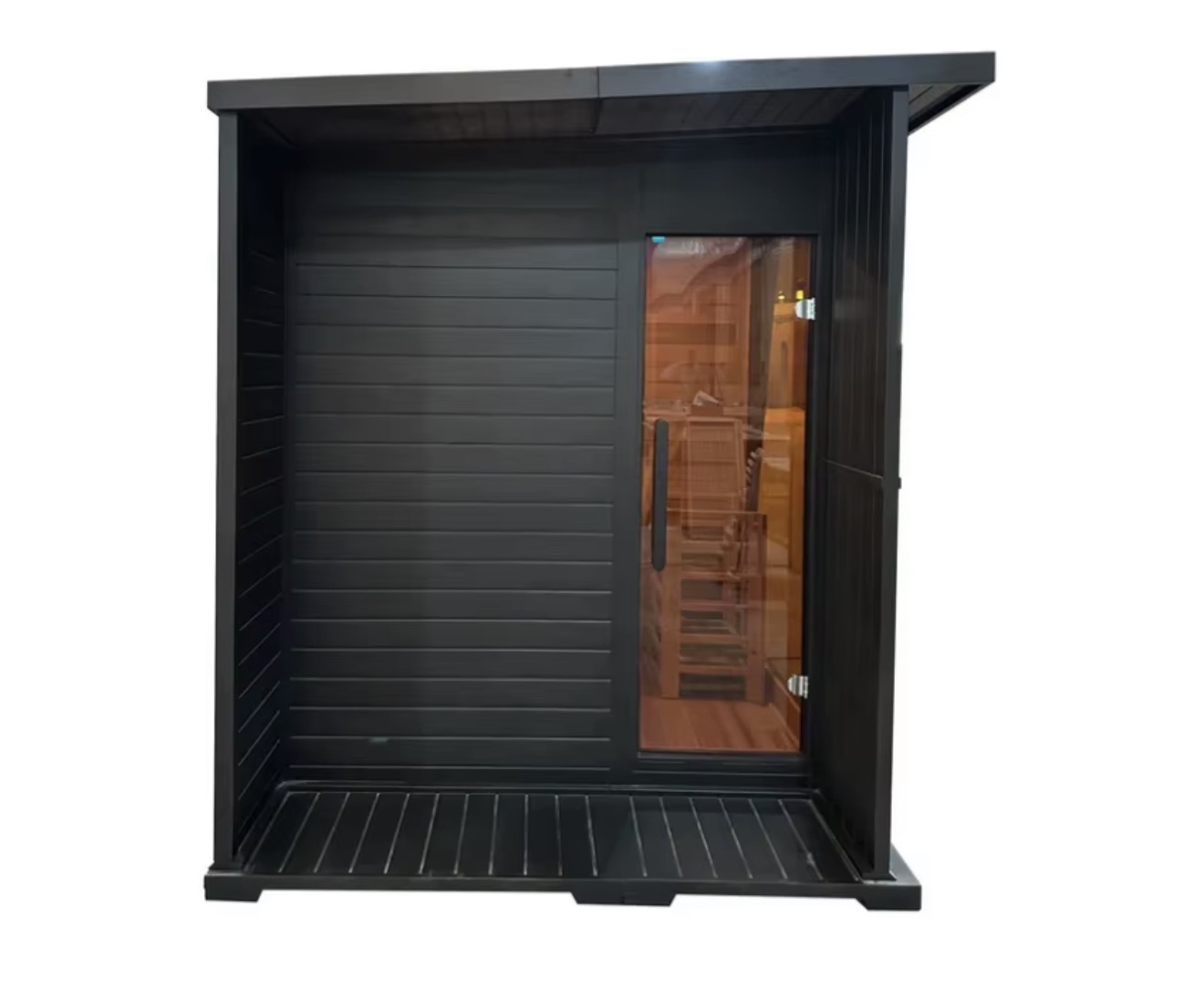

The shell is matte black cladding with a squared roofline and a recessed canopy. It is designed to be seen from across a room or a yard, not tucked into a corner.
Canadian hemlock inside
Clear hemlock paneling, benching and backrests throughout — a light, low-resin wood that holds finish and stays comfortable against skin at temperature.

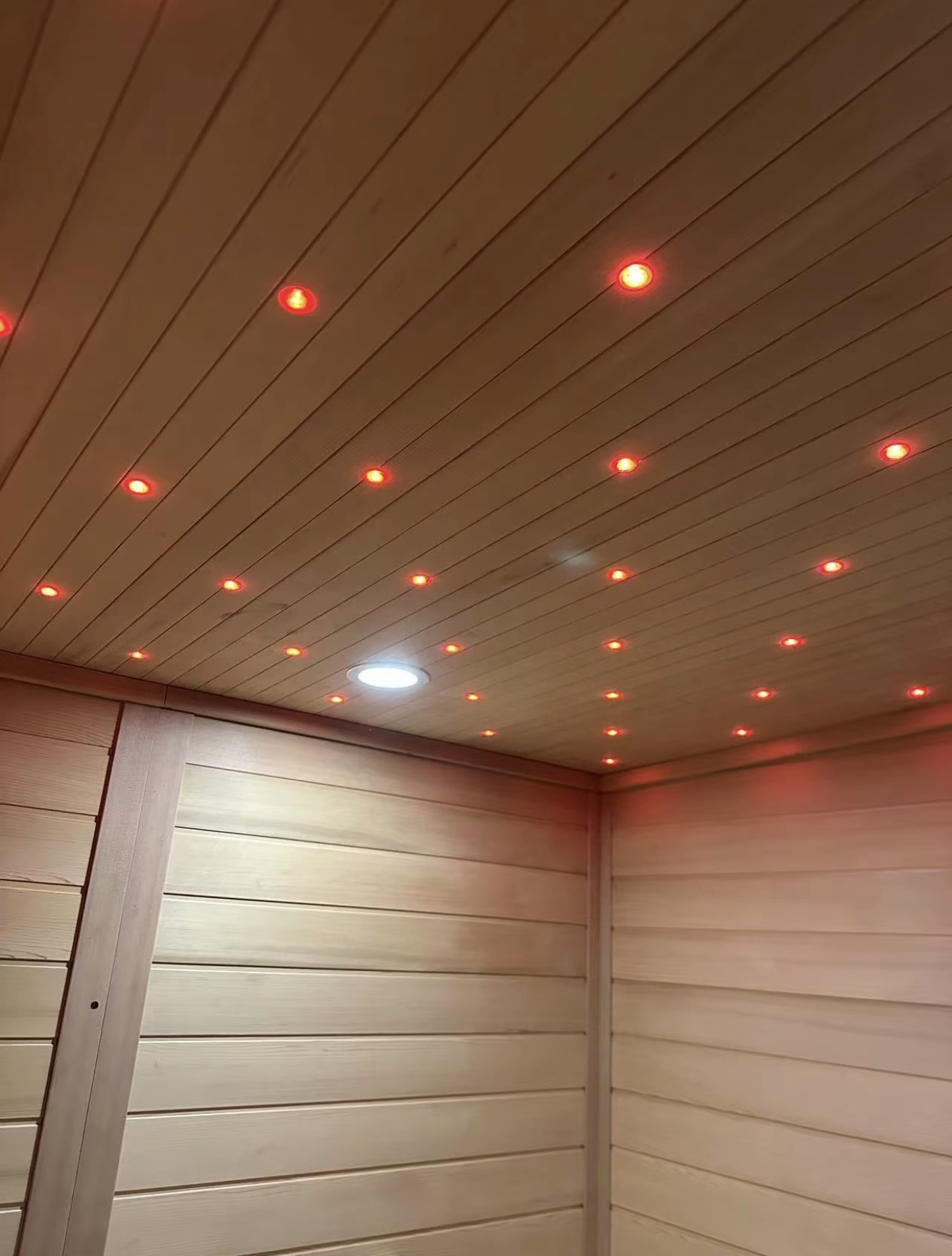

Chromotherapy overhead
A dense point array across the ceiling rather than a single strip, so the light reads as an even field over the bench instead of a fixture you look at.
Indoor or outdoor on the same unit
The weather-rated shell and covered canopy mean the same cabin serves a spa floor, a rooftop or a residential patio without a different build.
Full specifications
VP-SNA-4 specification
- Model
- Vantis Phoenix VP-SNA-4
- Exterior width
- 78.7 in (6.6 ft)
- Exterior depth
- 78.7 in (6.6 ft)
- Height, front
- 86.6 in (7.2 ft)
- Height, rear
- 82.7 in (7.0 ft)
- Occupancy
- 4
- Interior
- Canadian hemlock paneling, benching and backrests
- Exterior
- Matte black weather-rated cladding with covered front canopy
- Door
- Full-height tempered glass with vertical handle
- Seating
- Full-width bench with second tier
- Lighting
- Overhead cabin light plus chromotherapy ceiling point array
- Control
- Interior wall-mounted digital control for temperature and duration
- Placement
- Indoor or outdoor
- Assembly
- Panelized, assembled on site
- Warranty
- One year parts and service, included. Extended coverage available for purchase up to three years.
Operating protocol
How a session runs.
- 01Set the cabin on a level, load-rated surface with the canopy side clear for entry.
- 02Power up at the interior control and set the target temperature.
- 03Allow the cabin to come to set point before the session begins.
- 04Set the chromotherapy scene and cabin light from the interior control.
- 05Run the session at the set duration.
- 06Wipe down benches and glass between sessions and leave the door ajar to let the cabin dry.
Site requirements
Whether it fits in your building, today.
- Unit footprint
- 78.7 in × 78.7 in
- Ceiling height, minimum
- 8 ft for indoor placement
- Clearance, entry side
- 36 in for entry and exit
- Clearance, service side
- 12 in behind the heater wall
- Floor
- Level, solid and load-rated for the assembled cabin plus four occupants
- Delivery
- Panelized crates; confirm door widths and turns on the delivery path
- Placement
- Indoor or outdoor on a prepared pad, deck or finished floor
- Lead time
- 90–120 days to your door, made to order — varies by unit
Options and configurations
Configure the unit.
- White label branding
- Your logo and business name applied to the cabin, with custom colors and finishes — extra fee
- Quoted
- Custom exterior finish
- Cladding color or finish outside the standard range
- Quoted
- Audio package
- In-cabin speakers and source connection
- Quoted
- Exterior pad and surround
- Matched entry step and surround for the installed position
- Quoted
What's included
In the price on the plate.
- Vantis Phoenix cabin, panelized for on-site assembly
- Canadian hemlock interior with bench and backrests
- Full-height tempered glass door
- Overhead cabin light and chromotherapy ceiling array
- Interior digital control
- Freight and inside delivery to the room
- White glove installation and hands-on staff training, $8,000, required on every unit
- One year parts and service warranty included, extendable up to three years for purchase
Documentation
Download the full spec sheet.
Complete specification, site drawings and electrical requirements for the VP-SNA-4. From $12,500.
25% off — save $4,975
Buy the sauna and the plunge together
Pair the Vantis Phoenix cabin sauna with the Vantis Zero cold plunge in one order and take 25% off the combined price — a $4,975 saving. One delivery, one install, one thermal circuit — hot and cold from a single purchase.
Request a quote
