Vantis Celsius

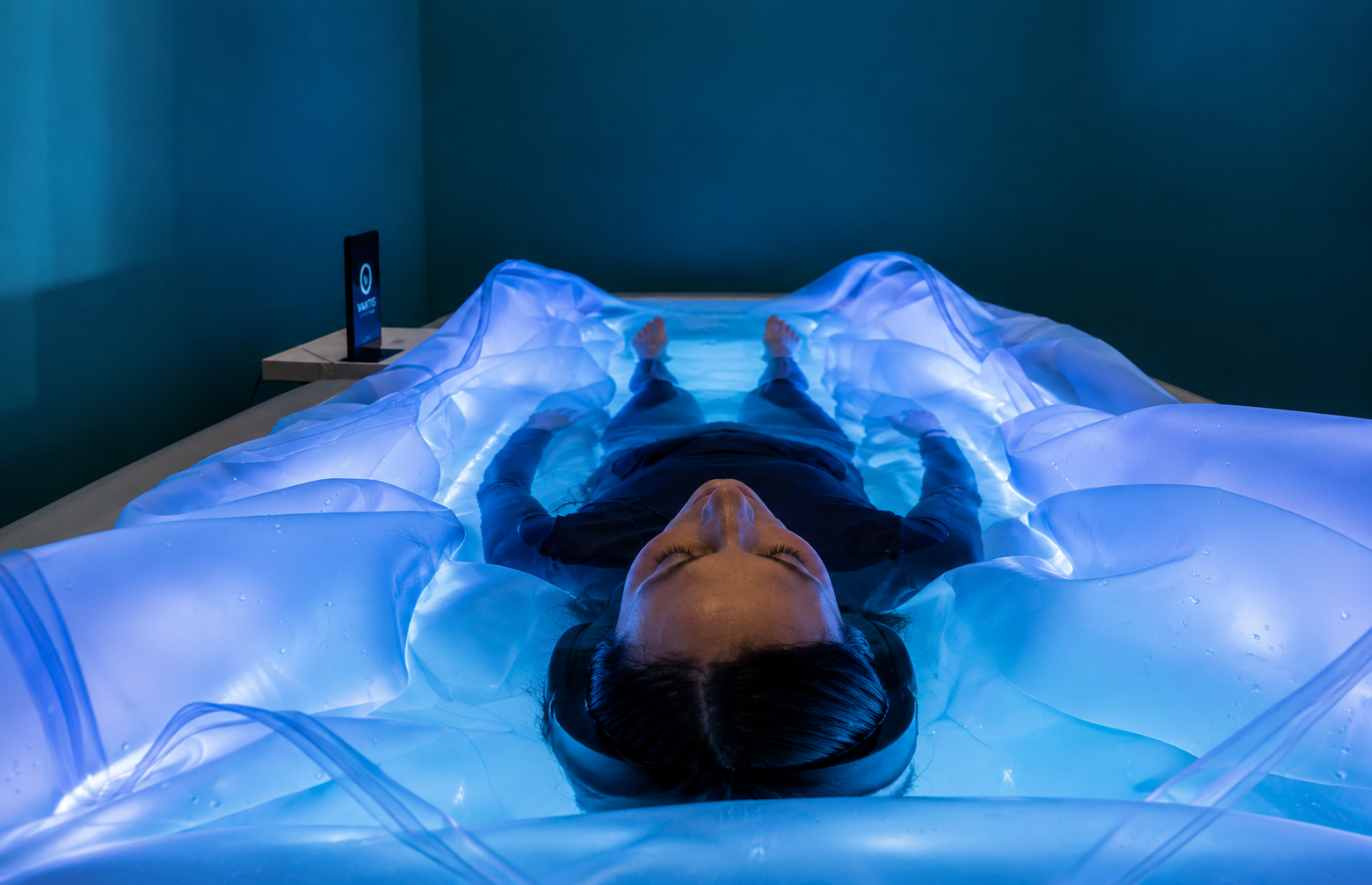

• Dry floatation: the client lies on a patented double-flap water membrane that wraps the body, with a blanket over the top. The water is sealed inside the bladder and circulates through its own pipework — the client stays fully dry and never gets in a tank.
• Two configurations, chosen at order. Cryo pairs the bed with a 3 HP, 3,080 W chiller and runs the membrane at a 39–43°F working temperature, down to a 41°F minimum set point. Warm pairs the same bed with a 3,600 W heater and runs up to 140°F, with 97°F the usual body-neutral set point.
• The unit heats or cools in one direction only — the panel control is either a chiller or a heater. It is not a single machine that switches between hot and cold, and the host cannot be converted after build.
• An electric platform inside the membrane lowers the body up to 9 in, so the client sinks into the membrane and floats. Float depth is trimmed by bleeding air out of the bladder — less air sinks deeper, more air floats higher.
• Temperature, session time, colored light and platform travel are all set from the panel touchscreen or the handheld remote clipped to the bed rail. A stop button ends the session at any time, from the bed.
• Seven color-light options, a 0 to 99 minute session timer, Bluetooth headset for the client's own audio, and a weekly scheduler that powers the host up and down on set days and times.
• No fill line, no drain line and no chemistry program. The bladder is filled once at commissioning, up to 132 gallons, and topped up only when serviced.

Model

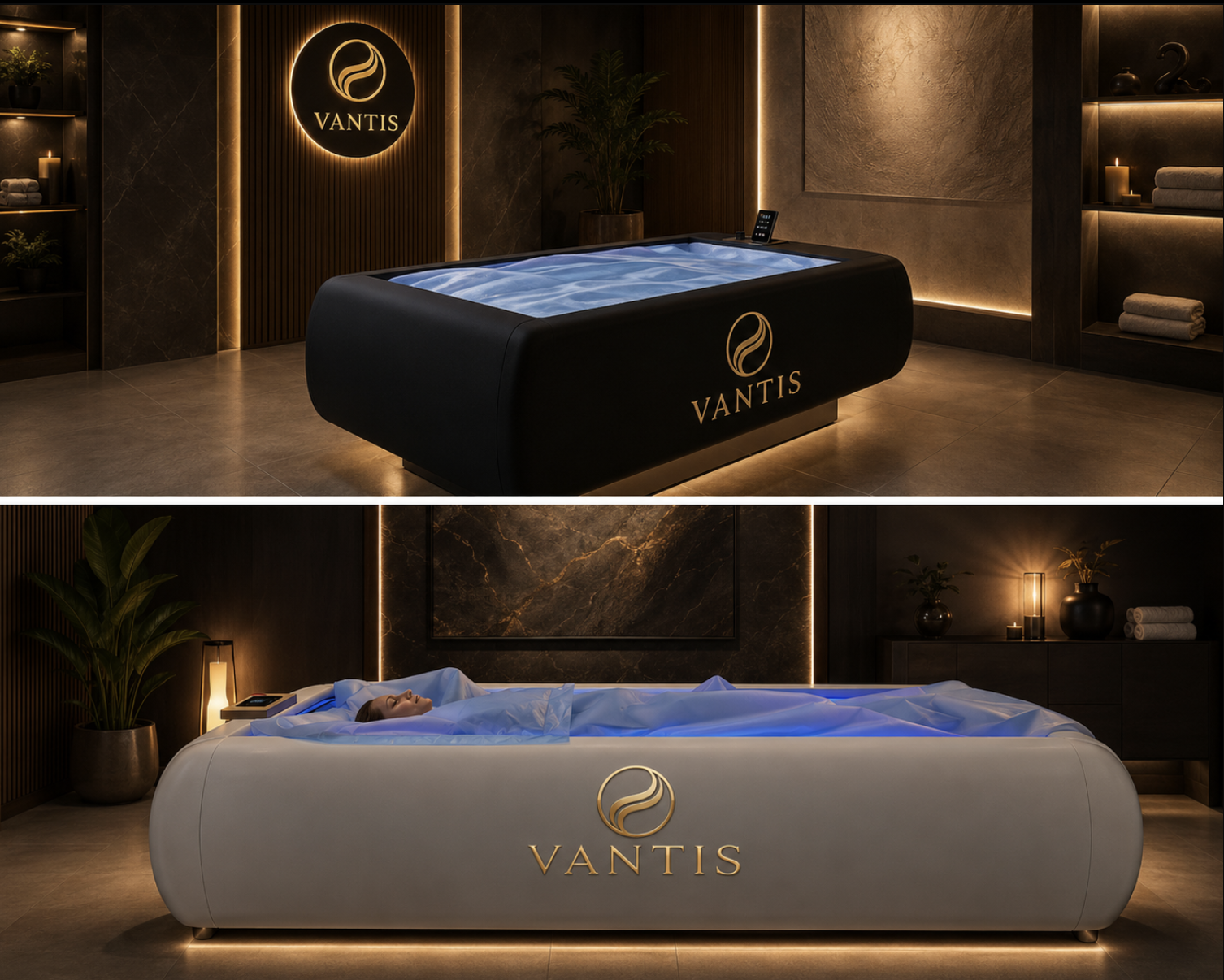

GD575 dry floatation platform (Vantis AV-CWP-1)

Configurations

Cryo (chiller host) or Warm (heater host) — specified at order, not field-convertible

Bed size

98.4 in L × 47.2 in W × 25.6 in H

Membrane (water bladder)

90.6 in L × 39.4 in W × 9.8 in deep

Bed weight

551 lb

Host weight

198 lb (chiller) / 154 lb (heater)

Platform load rating

661 lb

Platform travel

Up to 9 in of body sink, electrically driven

Water capacity

132 gal maximum, sealed in the membrane

Cryo temperature

41°F minimum set point, 39–43°F working range

Warm temperature

140°F maximum, 97°F typical body-neutral set point

Pull-down / pull-up rate

Approx. 18°F per hour — allow about 2 hours to reach set point from ambient

Chiller (Cryo)

3 HP, 3,080 W

Heater (Warm)

3,600 W

Circulation pump

350 W

Electrical, Cryo

240V, 60 Hz, single phase, 20A dedicated circuit, grounded — 3,500 W connected load

Electrical, Warm

240V, 60 Hz, single phase, 30A dedicated circuit, grounded — 4,000 W connected load

Session timer

0 to 99 minutes, set at the panel or remote

Lighting

Seven colors — green, blue, red, orange, yellow, white and cycle

Control

Panel touchscreen plus handheld remote on an adjustable bed-rail mount

Scheduler

Weekly on/off program, Monday through Sunday

Audio

Bluetooth headset, pairs to the client's own phone

Host-to-bed harness

13 ft water pipe, power lead and data lead

Standard finishes

Blue, grey, orange or black

Occupancy

1

Plumbing

None — no supply line, no drain

Warranty

One year parts and service from date of purchase

1. 01Confirm the host is powered and the membrane is at set point. From ambient this takes about two hours at roughly 18°F per hour, so schedule the first session accordingly or leave the weekly timer to bring the unit up before opening.
2. 02Set the target temperature at the panel or remote using the + and − keys. Cryo runs to a 41°F minimum; Warm is usually held at 97°F.
3. 03Select the light color and set the session time, up to 99 minutes.
4. 04Lay the wrapping blanket over the membrane. The client changes into disposable garments so the blanket stays clean.
5. 05Have the client lie down on the blanket over the membrane and fit the Bluetooth headset.
6. 06Press start. The platform lowers and the body sinks into the membrane, up to 9 in.
7. 07Fold the blanket over the top of the client and run the session.
8. 08To trim float depth, bleed air from the membrane inlet while the client is lying on it — less air sinks deeper, more air floats higher. Set this once per client and note it.
9. 09End at the timer or with the stop button, which the client can reach at any point. Raise the platform, help the client off, and wipe the membrane down.
10. 10Treat the membrane as the critical part: keep knives, fingernails, toenails, jewelry and anything sharp away from it.

Minimum clear room, bed

12 ft × 9 ft

Bed footprint

98.4 in × 47.2 in

Host placement

Separate back-of-house room recommended — the 3 HP host is audible under load. 13 ft harness from bed to host.

Clearance, both long sides

30 in for operator access

Clearance, host service side

24 in to the front access panel

Delivery door width, minimum

36 in

Floor loading

Level and sealed, rated for 551 lb bed plus 661 lb occupant load

Electrical circuit

One dedicated 240V, 60 Hz, single-phase grounded circuit — 20A for Cryo, 30A for Warm

Receiving

Forklift required at delivery — the crated bed and host cannot be unloaded by hand

Plumbing

None required. Tap access at commissioning only, to fill the membrane.

Lead time

90–120 days to your door, made to order — varies by unit

White glove install

$8,000, required — includes hands-on staff training

White label branding

Your logo and business name applied to the bed and host, with custom colors and finishes — extra fee

Quoted

Second configuration

A second complete unit in the opposite configuration, so the room runs both Cryo and Warm

Quoted

Spare membrane

Replacement double-flap water bladder held on site

Quoted

Additional blanket set

Spare 8 ft × 8 ft wrapping blankets for turnover

Quoted

Custom shell finish

Finish outside the standard blue, grey, orange and black range

Quoted

• White glove install and hands-on staff training, $8,000 — required on every unit, not optional
• Panel control host — chiller for Cryo, heater for Warm
• Floatation bed with patented double-flap water membrane and electric platform
• Water pipe, power lead and data lead between host and bed, 13 ft
• Handheld remote with adjustable bed-rail support
• Bluetooth headset
• Body wrapping blanket, 8 ft × 8 ft
• Grounded plug and base to US service
• Vacuum handle for the host front access panel
• Freight to the loading dock and inside delivery to the installed room
• Full spec, site requirement and operating documentation before purchase
• One-year parts and service warranty from date of purchase

Complete specification, site drawings and electrical requirements for the AV-CWP-1. From $59,000.
